Electromagnetic Sensor

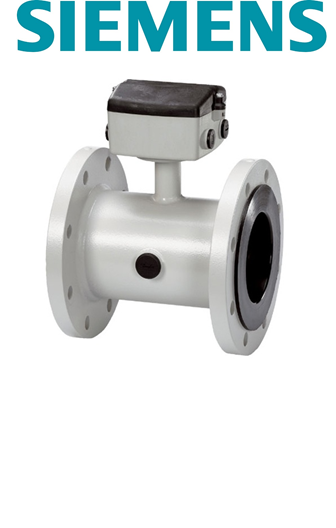

SITRANS F M MAG 5100W
The SITRANS F M MAG 5100 W with its patented liners of hard rubber NBR or ebonite and EPDM is a sensor
for all water applications such as ground water, drinking water, cooling water, waste water, sewage or sludge applications.
Detail
- Accuracy : 0.2 % ± 2.5 mm/s
- Nominal Sizes : From DN 15 to DN 2000 (1" to 78")
- Measuring Range : 0 to 10 m/s
- Operating Pressure : Max. 16 bar (Max. 150 psi)
- Ambient temperature : From -40 to 70 °C (-40 to 158 °F)
- Medium temperature : From -10 to 70 °C (-14 to 158 °F)
- Liners : EPDM NBR hard rubber Ebonite hard rubber
- Electrodes : Hastelloy C-276, Built-in grounding electrodes
- Material : Carbon steel, with corrosion resistant, two-component epoxy coating
Benefits
- Short lead time
- Rugged NBR hard rubber liner for all water and wastewater applications
- EPDM liner specifically for drinking water applications requiring special approvals
- Ebonite liner for drinking water, water and wastewater applications
- Increased low flow accuracy for water leakage detection (NBR or EPDM liner)
- Suitable for direct burial and constant flooding (IP68)
- Designed to allow patented MAG in-situ verification using the SENSORPROM fingerprint
