Electromagnetic Transmitter

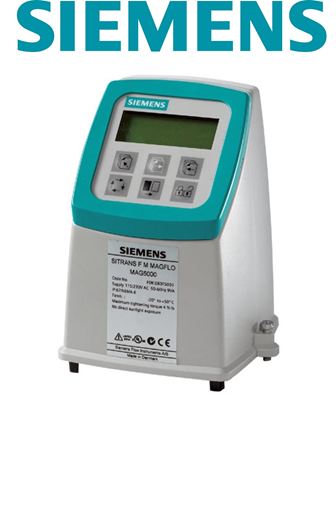

SITRANS F M MAG 5000
The SITRANS F M MAG 5000 is a microprocessor-based transmitter engineered for high performance, easy installation, commissioning and maintenance. The transmitter is truly robust, cost-effective and suitable for all-round applications and has a measuring accuracy of ± 0.4% of the flow rate.
Detail
- Accuracy : 0.4 % ± 1 mm/s
- Input/Output : 1 current output
1 digital output
1 relay output - Display : Background illumination with alphanumeric text, 3 x 20 characters
- Temperature : From -20 to 50 °C (-4 to 122 °F)
- Power Supply : 12-24 V AC/DC, 115-230 V AC
- Enclosure : P67 (NEMA 4x/6), IP20 (NEMA 2)
- Communication : HART
- Approvals : MI-001, Danak, PTB, OIML R49
- Ex-approvals : FM/CSA Class 1, Div 2
Benefits
- Cost effective transmitter with good performance
- SENSORPROM technology facilitates easy transmitter without loss of data and accurace
- Multiple functional output for process control
- Multi-lingual display and keypad interface
- Comprehensive diagnostic and service menu enhancing trouble shooting and meter verification
