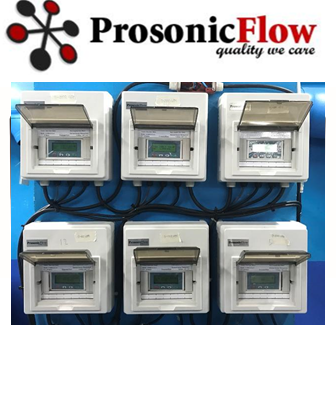

Wall-Mount Ultrasonic Flow Meter G3500
The PROSONIC G3500 ultrasonic thermal energy meter provides abundant capabilities for accurate thermal energy measurement of a liquid-based thermal energy production / transferring system. It is consisted of the high performance ultrasonic flowmeter and based on our cutting-edge clamp-on flow measurement technology, which is capable of measuring the flow from outside of a pipe accurately and reliably. Due to the non-intrusive nature of this technology, there is no pipe cutting, no moving parts, no pressure drop, no leaks and no risk of contamination. In addition, the installation is simple and requires no special skills or tools.
PROSONIC G3500 provides versatile input/output interfaces, such as isolated digital outputs, relay output, batch control, alarm, 4-20mA output. In addition, the built-in isolated RS-485 port with surge protection and MODBUS support makes remote energy monitoring and energy meter networking easy and reliable. It is an ideal choice for improving HVAC, energy production and building energy efficiency in terms of heating, cooling ventilation and air-conditioning.
Specification
- Accuracy : Better than ±1%
- Liquid Types : Virtually all commonly used liquids (full pipe) (<10,000ppm).
- Liquid Temp : 0˚C - 100˚C ( 150 ˚C option )
- Pipe Size : 1" - 240"
- Pipe Material : All metals, most plastics, fiber glass, etc.
- Dimension & weight : 90x90x37 mm ,110g
Benefit
- All components of system G3500 flowmeters, temperature sensors and net heat computing unit are manufactured
- High accuracy. Normally, ±1%. When on-site calibration available, ±0.5%.
- Wide flow range 0.03 to 105ft/s. - Wide pipe size range (from 1" to 240").
- Noninvasive. No pipe disturbance. No moving parts, no pressure drop.
- Easy and economical installation. No cutting pipe, non drilling hole.
- Suitable for all commonly used pipe materials
- Easy to use and set up. Self-explanatory menu programming
- Wide flow measurement range, bi-directional
- Built-in totalizers, batch controllers and task Scheduler
- Isolated RS-485 interface. Supports the MODBUS Protocol
- Abundant input/output, such as 4-20mA output, relay output, pulse output, alarm output, etc.
- No moving parts to worn out. Long-life span. Maintenance-free
- Suitable for virtually any liquid heating/cooling
