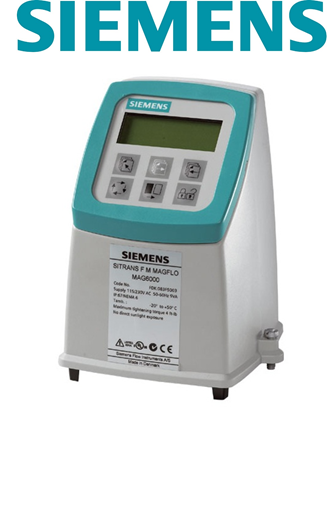

Electromagnetic Transmitter
SITRANS F M MAG 6000
The SITRANS F M MAG 6000 is a microprocessor-based transmitter engineered for high performance, easy installation,
commissioning and maintenance. The transmitter is robust and suitable for all-round applications and can be fitted
with optional plug-in communication modules.
Detail
- Accuracy : 0.2 % ± 1 mm/s
- Input/Output : 1 current output
1 digital output
1 relay output - Display : Background illumination with alphanumeric text, 3 x 20 characters
- Temperature : From -20 to 50 °C (-4 to 122 °F)
- Power Supply : 12-24 V AC/DC, 115-230 V AC
- Enclosure : P67 (NEMA 4x/6), IP20 (NEMA 2)
- Communication : HART, MODBUS RTU, Profibus PA/DP, DeviceNet, Foundation Fieldbus
- Approvals : MI-001, Danak, PTB, OIML R49, R75 and R117
- Ex-approvals : FM/CSA Class 1, Div 2
Benefits
- Superior signal resolution for optimal turn down ratio
- Built-in advanced batch control
- Comprehensive diagnostic and service menu enhancing trouble shooting and meter verification
- SENSORPROM technology facilitates easy transmitter setup and replacement with automatically re-programming of any new transmitter without loss of data and accuracy
- USM II platform enables fitting of add-on bus modules without loss of functionality and all modules can be fitted as true Plug & Play
